CMS Modular UPS 10-100kVA
Module Capicity: 10kVA
3/3, 3/1, 1/3, 1/1; 50/60Hz; BOTTOM/TOP feed
High Frequency MODULAR UPS
Choice of UPS module result in rational redundancy.
Modular,hot-swappable, field-replaceable STS, monitor, UPS module.
Scalable from 10KVA to 100KVA. Parallel-capable up to 400KVA.
Overview
Sicon CMS is non-isolated, world class, redundant, scalable, 3 Phase Online UPS power protection system designed to cost effctively provide high levels of availability. Sicon CMS is a true modular uninterruptible power supply, its architecture can scale power as demand grows or as higher levels of availability are required, perfect integrating into today's data center designs. Sicon CMS online double conversion ups is industry-leading efficiency, availability, and performance for small, medium, large data centers and mission critical environments.
Breif introduction for Sicon CMS 380VAC 400VAC 415VAC 3 Phase UPS Products Range: 7 type system frame, 3 type ups module, which is designed basing on rational redundancy and projects requiement. system frame: 50kva, 100kva, 150kva, 250kva, 350kva, 500kva, 800kva. ups module: 10kva, 25kva, 50kva. Basing on these products, Sicon offer the most reasonable, cost-effective modular ups solution for projects.
Meanwhile, basing on rack-mount ups solution requirement, Sicon launched CMS/A Rack-Independent Technology Modular UPS basing on 25kva ups module with 100kva/200kva base unit in 2015, leading in Market.
ups install reference | more about sicon plant | sicon support
50/100kva Features
3/3// Uninterruptible Power Supplies 10kVA- 20kVA -30kVA -40kVA -50kVA -60kVA -70kVA -80kVA -90kVA -100kVA
UPS module: 10 kVA
System frame/chassis: 50kVA, 100 kVA
Excellent power capability
50kVA single chassis, parallelable up to 200kVA
100kVA single chassis, parallelable up to 400kVA
Transformer Free UPS technology, lower space and weight
Online double Conversion (VFI-SS-111) · Rational redundant structure · N+X redundancy
High efficiency · AC/DC, DC/AC 95%, DC/AC 98% efficiency
Input low current harmonic distortion · THDI ≤ 3%
High input power factor · input PF ≥ 0.99
High output power factor · Output PF = 0.9
Static and Maintenance bypass switch
Short circuit and overload protection
RS232 serial ports and dry contacts
Multi-level decentralized control technology and Master-slave synchronization in sequency control
Each module automatically even shares the input and output current, all UPS modules share batteries
Selectable input/ output voltage/ frequency range
Split by-pass
Battery management:
Battery discharge management
Auto-transfer between floating and even charging
Temperature compensation
Optional SNMP, Modbus adapters
Optional configuration: GENSET, EPO, Transformer, Battery Bank, IPDS
2 year warranty
10 years spare parts support
10kVA UPS module
Full functioned UPS, delivering a combination of converter, inverter, charger and controller
Isolated airflow with redundant fans · Online cleanable airfliter · High power density · High efficiency · Autonomous Start-up · Cold start
STS Module
Parallel of SCR and AC Contactor
Online replace without shutdown system · High reliablity and overload ability · Transfer time within 1ms · Self-diagnose, interlock
Application
IDC date center · Government · Telecom · Bank · Security · Transportation · Broadcast&TV network · HealthCare · Communication · E-business · Finance · etc.
Products
Model
Contact Sicon
CMS-150/25
enquiry@scupower.com
CMS/A-100, CMS/A-200
enquiry@scupower.com
CMS-250/25
enquiry@scupower.com
CMS-350/50
enquiry@scupower.com
CMS-500/50
enquiry@scupower.com
CMS-800/50
enquiry@scupower.com
CMS-90/15UH5
enquiry@scupower.com
CMS-120/15UH5
enquiry@scupower.com
CMS-150/15UH5
enquiry@scupower.com
CMS-90/15
enquiry@scupower.com
CMS-120/15
enquiry@scupower.com
CMS-150/15
enquiry@scupower.com
ERMS-12/6
enquiry@scupower.com
ERMS-24/6
enquiry@scupower.com
ERMS-36/6
enquiry@scupower.com
Sicon Solutions
Industrial Modular UPS N+X Solution
Sicon UPS at International Fair
Astronomy Case-Sicon Modular UPS Applied to the World’s Largest Single-aperture Telescope Base
Sicon Online Show Room

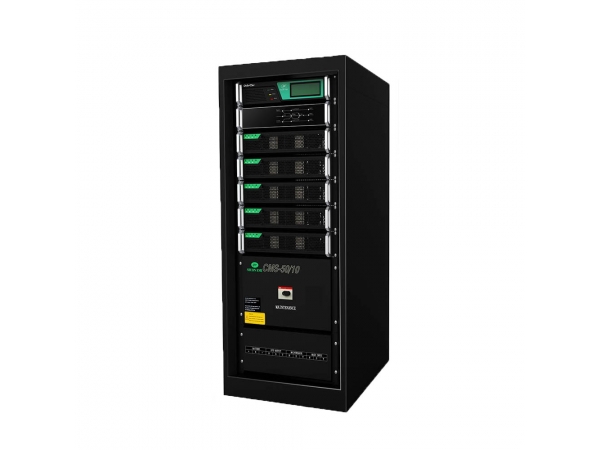

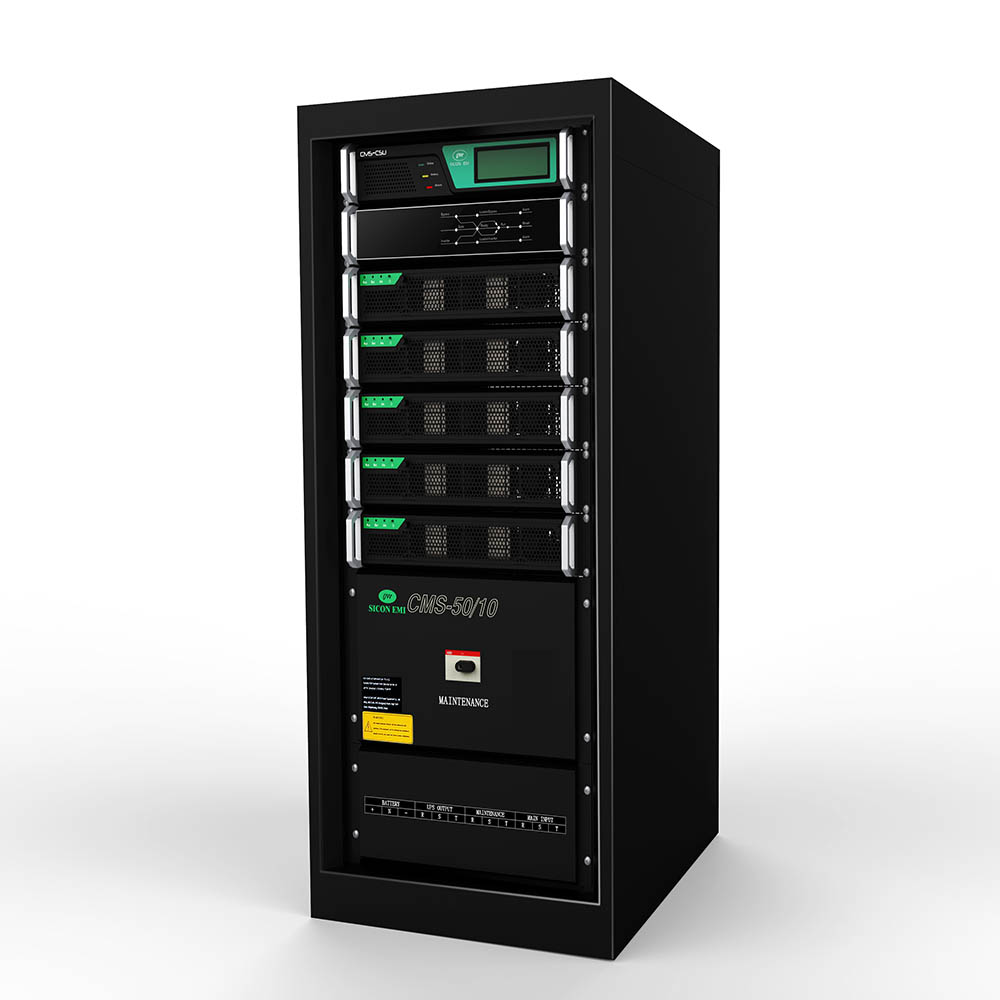

Product : CMS-50/10
Adaptable 10 to 50 kVA power capacity
10 kVA UPS module (CM10)
Configuration: 5 slots
Components: STS module, Monitor module, UPS module, Power distribution
Top or bottom feed
System Dimension: 600*800*1200 (W*D*H)mm
Module Dimension: 482*465*89 (W*D*H)mm

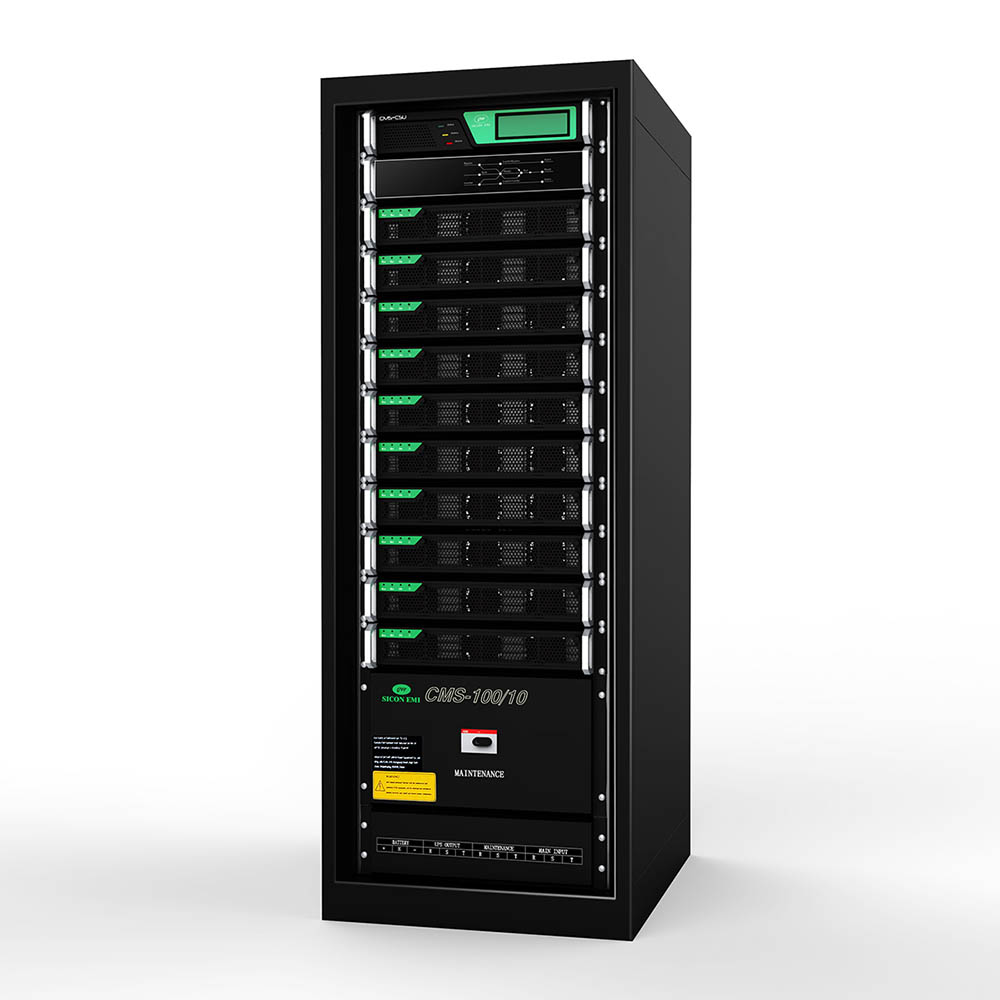

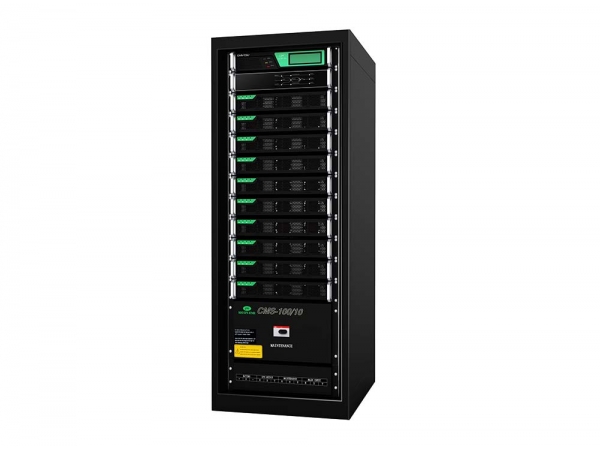

Product : CMS-100/10
Adaptable 10 to 100 kVA power capacity
10 kVA UPS module (CM10)
Configuration: 10 slots
Components: STS module, Monitor module, UPS module, Power distribution
Top or bottom feed
System dimension: 600*800*1600 (W*D*H)mm
Module dimension: 482*465*89 (W*D*H)mm
|
System model |
CMS-50/10 |
CMS-100/10 |
||
|
Maximum power |
50 kVA |
100 kVA |
||
|
Power module model |
10 kVA |
|||
|
Mains Input |
Input mode |
3-phase +N +E, 1-phase +N +E |
||
|
Input voltage |
380V/220V±20%, 400V/230V±20%, 415V/240V±20% |
|||
|
Input frequency |
50Hz±10%, 60Hz±10% |
|||
|
Power woke-in (Sec.) |
60sec |
|||
|
THDI (%) |
＜3% |
|||
|
Input PF |
≥0.99 |
|||
|
Bypass Input |
Input voltage |
380V/220V±20%, 400V/230V±20%, 415V/240V±20% |
||
|
Input frequency |
50 Hz, 60 Hz |
|||
|
Range of Frequency Synchro |
50 Hz±4%, 60 Hz±4% |
|||
|
DC Input |
Rated Input voltage |
±384VDC |
||
|
Input voltage tolerance |
±345V~±440V DC |
|||
|
Battery charging |
Charging current limited |
yes |
||
|
Charging ability |
10 hours (2 hours back up) |
|||
|
Stability of charging voltage |
±1% |
|||
|
AC output |
UPS power factor |
0.9 |
||
|
Output voltage |
380V/220V AC, 400V/230V AC, 415V/240V AC |
|||
|
Output frequency |
±4%;±0.2% (battery supply) |
|||
|
Output voltage stability |
±1% |
|||
|
Output voltage recovering time |
＜20ms (load 0~100% change) |
|||
|
Overload ability |
Operate 10mins with 125% load |
|||
|
Transfer from mains to battery supply |
0ms |
|||
|
Transfer from bypass to inverter supply |
<1ms |
|||
|
Peak factor |
3:01 |
|||
|
Waveform distortion |
≤1% ( linear load ), ≤3%( non-linear load ) |
|||
|
Overall efficiency |
≥95% (AC~AC), ≥98% (DC~AC) |
|||
|
Load share precision |
≤5% |
|||
|
Operation environment |
Ambient temperature |
-25℃～60℃ |
||
|
Operating temperature |
-5℃～40℃ |
|||
|
Maximum operation altitude |
≤1500m |
|||
|
Relative humidity |
≤95% non-cadency |
|||
|
Protection degree |
IP30 |
|||
|
Cooling |
Air cooling |
|||
|
Applicable safety standards |
EN62040-1-1:2003 IEC60950-1:2001 |
|||
|
Electromagnetic compatibility |
EN62040-2:2006 |
|||
|
Acoustic noise |
≤55DB |
|||
|
Others |
Cabinet |
Standard 19 inch cabinet |
||
|
Monitor management system |
UPSupervisor |
|||
|
Interface |
RS232, RS485 and 8 try contact, TCP/IP adapter, SNMP(optional) |
|||
|
Display |
Touch LCD/LED Screen |
|||
|
Weight(kg) |
150 |
200 |
||
